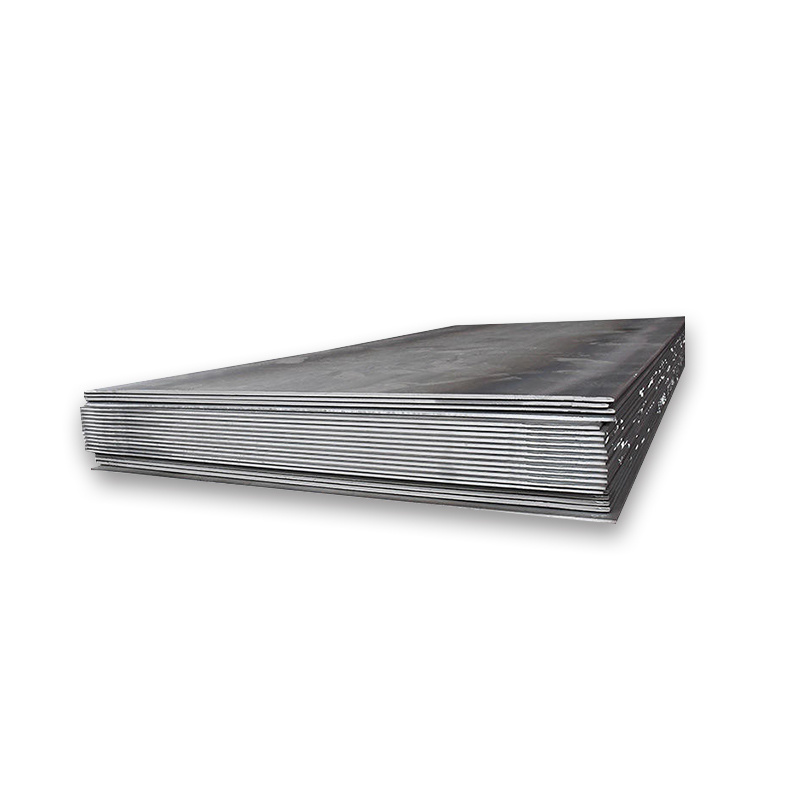

A588 Carbon Steel Plate Description
ASTM A588 steel includes Class A, Class B, Class C, and Class K. The ASTM A588 steel specification is based on the standard specification for high-strength low-alloy structural steel with a lower yield point of up to 50ksi for applications requiring high strength and corrosion resistance.
Product Parameters
|
Product Name |
A588 Carbon Steel Plate |
|
Production Process |
Hot Rolling, Cold Rolling |
|
Material Standards |
AISI, ASTM, ASME, DIN, BS, EN, ISO, JIS, GOST, SAE, etc. |
|
Width |
100mm-3000mm |
|
Length |
1m-12m, or Customized Size |
|
Thickness |
0.1mm-400mm |
|
Delivery Conditions |
Rolling, Annealing, Quenching, Tempered or Standard |
|
Surface Process |
Ordinary, Wire Drawing, Laminated Film |
Chemical Composition
|
A588 |
C |
Mn |
P |
S |
Ni |
Si |
Cr |
|
GradeA |
≤ 0.19 |
0.80~1.25 |
≤ 0.04 |
≤ 0.05 |
≤ 0.40 |
0.30-0.65 |
0.40-0.65 |
|
GradeB |
≤ 0.20 |
0.75~1.35 |
≤ 0.04 |
≤ 0.05 |
≤ 0.50 |
0.15-0.50 |
0.40-0.70 |
|
GradeC |
≤ 0.15 |
0.80~1.35 |
≤ 0.04 |
≤ 0.05 |
0.25-0.50 |
0.15-0.40 |
0.30-0.50 |
|
GradeK |
≤ 0.17 |
0.50~1.20 |
≤ 0.04 |
≤ 0.05 |
≤ 0.40 |
0.25-0.50 |
0.40-0.70 |
Mechanical Properties
|
A588 |
Tensile Strength |
Yield Strength |
Elongation 200mm% |
Elongation 50in% |
|
Thickness≤100mm |
485 |
345 |
18 |
21 |
|
Thickness>100-125mm |
460 |
315 |
- |
21 |
|
Thickness>125-200mm |
435 |
290 |
- |
21 |
Physical Performance
|
Physical Performance |
Metric |
Imperial |
|
Density |
7.75g/cc |
0.280 lb/in³ |
Scope of Application
ASTM A588 steel is known for its weather resistance. When exposed to external conditions, its corrosion resistance becomes stronger even if it is not painted. ASTM A588 steel has four times the corrosion resistance of carbon steel. The application of ASTM A588 steel is very wide. In addition to its typical application in welded bridges and buildings, this specification is also widely used in railway passenger cars; including transmission towers and telephone towers, trucks, bridges and gusset plates, and housing shells. ASTM A588 steel also maintains a good strength-to-weight ratio, meeting the high strength requirements of carbon steel with less weight.
| China | USA | Germany | Japan | France | France | internationality |
| GB3077 | AlSI | DIN | JIS | NE | BS | ISO |
| 20Mn2 | 1320 1221 | 20Mn5 | SMn21 | 20M5 | 150M19 | - |
| 30Mn2 | 1330 | 30Mn5 | SMn24 | 32M5 | 150M28 | - |
| 35Mn2 | 1335 | 36Mn5 | SMnl | 35M5 | 150M36 | - |
| 40Mn2 | 1340 1341 | - | SMn2 | 40M5 | - | - |
| 45Mn2 | 1345 | 46Mn7 | SMn3 | 45M5 | - | - |
| 50Mn2 | 1052 | 50Mn7 | - | 55M5 | - | - |
| 20MnV | - | 20MnV6 | - | - | - | |
| 30Mn2MoW | - | -- | - | - | - | |
| 27SiMn | - | 27MnSi5 | - | - | - | |
| 35SiMn | - | 37MnSi5 | - | 38MS5 | - | - |
| 42SiMn | - | 38MnSi4 46MnSi4 | - | 38MS5 | - | - |
| 20SiMn2MoV | - | - | - | - | - | - |
| 25SiMn2MoV | - | - | - | - | - | - |
| 37SiMn2MoV | - | - | - | - | - | - |
| 40B | 14B35 | 35B2 | - | - | - | - |
| 45B | 50B46H | 45B2 | - | - | - | - |
| 50B | 14B50 | - | - | - | - | - |
| 4OM∏B | 15B41 | - | - | - | - | - |
| 45MnB | 15B48 50B44 | - | - | - | - | - |
| 20Mn2B | - | - | - | - | - | - |
| 20MnMoB | 80B20 | - | - | - | - | - |
| 15MnVB | - | - | - | - | - | - |
| - | - | - | - | - | - | - |
| - | - | - | - | - | - | - |
| 20MnVB | - | - | - | - | - | - |
| 40MnVB | - | - | - | - | - | - |
| 20MnTiB | - | - | - | - | - | - |
| 25MnTiBRE | - | - | - | - | - | - |
| 2OSiMnVB | - | - | - | - | - | - |
| 15Cr | 5015 5115 | 15Cr3 | SCr21 | 12C3 | 523A14 523M15 | - |
| 15CrA | - | - | - | - | - | - |
| 20Cr | 5120 | 20Cr4 | SCr22 | 18C3 18C4 | 527A19 527M20 | 683/11 20Cr4 20CrS4 |
| 30Cr | 5130 | 28Cr4 | SCr2 | 28C4 32C4 | 530A30 530A32 | - |
| 35Cr | 5135 | 34Cr4 37Cr4 | SCr3 | 38C4 | 530A36 | 683/8 3、 3a、 3b |
| 40Cr | 5140 | 38Cr4 41Cr4 | SCr4 | 42C4 | 530A40 530M40 | 683/1 4、 4a^ 4b |
| 45Cr | 5145 | 42Cr4 | SCR5 | 45C4 | - | - |
| 50Cr | 5150 5152 | - | - | 50C4 | En48 | - |
| 38CrSi | - | - | - | - | - | - |
| 12CrMo | 4119 | 13CrMo44 | - | 12CD4 15CD2 | - | - |
| 15CrMo | ASTM A-387Gr. B | 15CrMo5 16CrMo44 | SCM21 | 15CD4. 05 | BS1653 | - |
| 20CrMo | 4118 | 20CrMo5 22CrMo4 | SCM22 | 18CD4 20CD4 | CDS 12 CDSllO | - |
| 30CrMo | 4130 | 25CrMo4 | SCM2 | 30CD4 | CDS 13 | - |
| 30CrMoA | - | 32CrMol2 3ICRMo12 | - | - | - | - |
| 35CrMo | 4135 4137 | 34CrMo4 35CrMo4 | SCM3 | 35CD4 | 78A37 | 683/1 C35ea C35eb |
| 42CrMo | 4140 4142 | 41CrMo4 42CrMo4 | SCM4 | 40CD4 42CD4 | 708M40 708A42 709M40 | 683/1 3 |
| 12CrMoV | - | - | - | - | - | - |
| 35CrMoV | - | 35CrMoV5 | - | - | - | - |
| 12CrlMoV | - | 13CrMoV4.2 | - | - | - | - |
| 25Cr2MoVA | - | 24CrMoV5.5 | - | - | - | - |
| 25Cr2MolVA | - | - | - | - | - | - |
| 20CR3MoWVA | - | 21CrVMoW12 | - | - | - | - |
| 38CrMoΛl | 6370 (ΛMS) | 34CrAlMo5 41CrAlMo7 | SACM645 | 40CAD6.12 | 905M39 | 683/10 41CrAlMo74 |
| 20CrV | 6120 | 22CrV4 | - | 22CrV4 | - | - |
| 40CrV | 6140 | 42CrV | - | 42CrV4 | - | - |
| 50CrVA | 6150 | 50CrV4 | SUPlO | 50CV4 | 735A50 | - |
| 15CrMn | - | 16MnCr5 | - | 16MC5 | - | - |
| 20CrMn | 5120 | 20MnCr5 | SMC21 | 20MC5 | - | - |
| 40CrMn | 5140 | - | SMC3 | - | - | - |
| 20CrMnSi | - | - | - | - | - | |
| 25CrMnSi | - | - | SMKl | - | - | - |
| 30CrMnSi | - | - | - | - | - | - |
| 30CrMnSiA | - | - | - | - | - | - |
| 35CrMnSiA | - | - | SMK2 | - | - | - |
| 20CrMnMo | 4119 | 20CrMo5 | SCM23 | - | - | - |
| 40CrMnMo | 4140 | - | - | - | - | - |
| 20CrMnTi | - | - | SMK22 | - | - | - |
| 30CrMnTi | - | 30MnCrTi4 | - | - | - | - |
| 20CrNi | 3120 | 20NiCr6 | - | 20NC6 | 637A16 637M17 | - |
| 40CrNi | 3140 | 46NiCr6 | SNCl | 35NC6 | 640A35 640M40 | - |
| 45CrNi | 3145 | 45NiCr6 | - | - | - | - |
| 50CrNi | 3150 | - | - | - | - | - |
| 12CrNi2 | 3115 | 14NiCrlO | SNC21 | IONCll 14NC11 | - | - |
| 12CrNi3 | 3310 | 13NiCrl2 | SNC22 | 10NC12 14NC12 | 655A12 655M13 | - |
| 20CrNi3 | - | 22NiCrl4 | - | 20NC11 | - | - |
| 30CrNi3 | - | 28NiCrlO 31NiCrl4 | SNC2 | 30NC11 30NC12 | - | - |
| 37CrNi3 | - | 35NiCrl8 | SNC3 | 35NC15 | - | - |
| 12Cr2Ni4 | E3310 | 14NiCrl8 | - | 12NC15 | - | - |
| 20Cr2Ni4 | E3316 | 22NiCrl4 | - | 20NC14 | 659A15 659M15 | - |
| 20CrNiMo | 8620 8720 | 20NiCrMo2 21NiCrMo2 | - | 20NCD2 | 805A20 805M20 | - |
| 40CrNiMoA | 4340 9840 | 36NiCrMo4 40NiCrMo6 | SNCM8 | 35NCD5 40NCD3 | 817M40 816M40 | - |
| 45CrNiMoVA | 4437 | - | SNCM9 | - | - | - |
| 18Cr2Ni4WA | ||||||
| 25Cr2Ni4WA |
Packing and delivery
We can provide container or bulk transportation, road, rail or inland waterway and other land transportation methods for export. Of course, if there are special requirements, we can also use air transportation.
