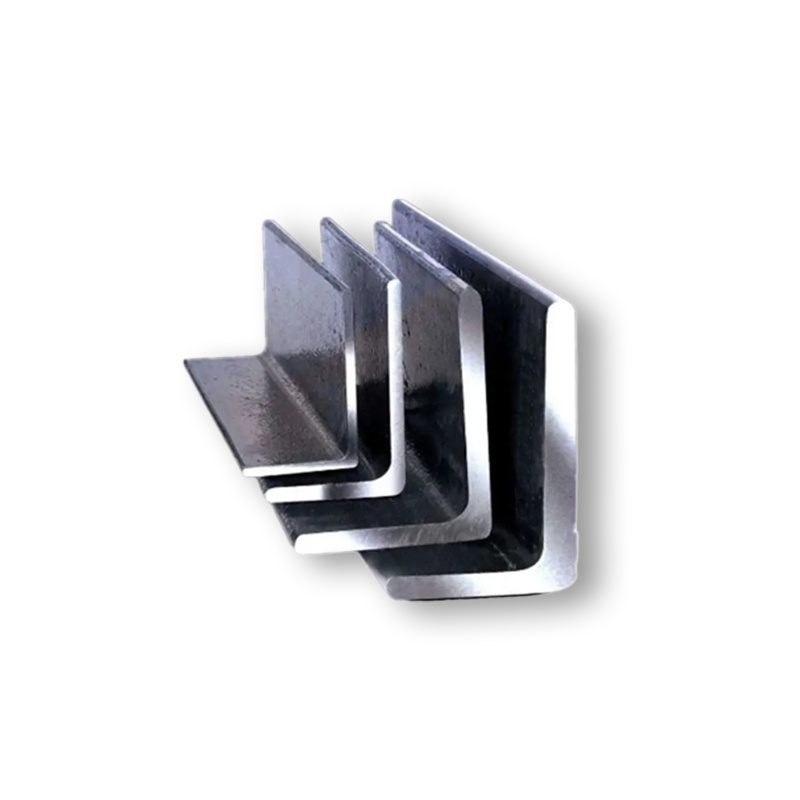

Carbon Steel Unequal Angle Steel

Unequal angle steel is widely used in various metal structures, bridges, machinery manufacturing and shipbuilding, various building structures and engineering structures, such as beams, bridges, transmission towers, lifting and transportation machinery, ships, industrial furnaces, reaction towers, container racks and warehouses.

Classification :

Angle Steel

WhatsApp : +8618754240592

E-mail : Olivia@ansteelglobal.com

PRODUCT DETAILS

Product Description

Product Parameters

Material	A36,St37,S235J0,S235J2,St52,16mn,S355JOQ195,Q215,Q235B,Q345B,S235JR,S355JR,S355,SS440,SM400A,SM400BA572,GR50,GR60,SS540
Scope of production	H100100-H400400H15075 -H900300
Thickness	1-30mm
Width	15-400mm
Length	6m, 9m, 12mor according to customer requirements
Technology	Hot rolled, welded
Standard	ASTM,AISI,JIS,GB, DIN,EN
Surface	Galvanized, painted;or according to your requirements
supply capacity	2000tons/Day
Business Type	Manufacturer
Certificate	ISO, SGS,BV
Application	Widely used in building structures and engineering construction, such as room beams, ship beams, industrial furnaces, etc.
loading port	Any port in China
Packaging	Standard export packing or as your request
Payment Method	Wire transfer, spot letter of credit, Western Union, payment documents, acceptance documents, PayPal.

Model		Single angle										Double angle
		Rounded corner	Central moment	Cross-sectional area	Mass	Moment of inertia	Section modulus		Radius of gyration			iy, When a is the following value
		R	Z0	A	Mass	Ix	Wxmax	Wxmin	ix	ix0	iy0	6mm	8mm	10mm	12mm	14mm
		（mm）		(cm2)	(kg/m)	(cm4)	(cm3)		(cm)			(cm)
L90×	6	10	24.4	10.64	8.35	82.77	33.99	12.61	2.79	3.51	1.8	3.91	3.98	4.05	4.12	4.2
	7		24.8	12.3	9.66	94.83	38.28	14.54	2.78	3.5	1.78	3.93	4	4.07	4.14	4.22
	8		25.2	13.94	10.95	106.5	42.3	16.42	2.76	3.48	1.78	3.95	4.02	4.09	4.17	4.24
	10		25.9	17.17	13.48	128.6	49.57	20.07	2.74	3.45	1.76	3.98	4.06	4.13	4.21	4.28
	12		26.7	20.31	15.94	149.2	55.93	23.57	2.71	3.41	1.75	4.02	4.09	4.17	4.25	4.32
L100×	6	12	26.7	11.93	9.37	115	43.04	15.68	3.1	3.91	2	4.3	4.37	4.44	4.51	4.58
	7		27.1	13.8	10.83	131	48.57	18.1	3.09	3.89	1.99	4.32	4.39	4.46	4.53	4.61
	8		27.6	15.64	12.28	148.2	53.78	20.47	3.08	3.88	1.98	4.34	4.41	4.48	4.55	4.63
	10		28.4	19.26	15.12	179.5	63.29	25.06	3.05	3.84	1.96	4.38	4.45	4.52	4.6	4.67
	12		29.1	22.8	17.9	208.9	71.72	29.47	3.03	3.81	1.95	4.41	4.49	4.56	4.64	4.71
	14		29.9	26.26	20.61	236.5	79.19	33.73	3	3.77	1.94	4.45	4.53	4.6	4.68	4.75
	16		30.6	29.63	23.26	262.5	85.81	37.82	2.98	3.74	1.93	4.49	4.56	4.64	4.72	4.8
L110×	7	12	29.6	15.2	11.93	177.2	59.78	22.05	3.41	4.3	2.2	4.72	4.79	4.86	4.94	5.01
	8		30.1	17.24	13.53	199.5	66.36	24.95	3.4	4.28	2.19	4.74	4.81	4.88	4.96	5.03
	10		30.9	21.26	16.69	242.2	78.48	30.6	3.38	4.25	2.17	4.78	4.85	4.92	5	5.07
	12		31.6	25.2	19.78	282.6	89.34	36.05	3.35	4.22	2.15	4.82	4.89	4.96	5.04	5.11
	14		32.4	29.06	22.81	320.7	99.07	41.31	3.32	4.18	2.14	4.85	4.93	5	5.08	5.15
L125×	8	14	33.7	19.75	15.5	297	88.2	32.52	3.88	4.88	2.5	5.34	5.41	5.48	5.55	5.62
	10		34.5	24.37	19.13	361.7	104.8	39.97	3.85	4.85	2.48	5.38	5.45	5.52	5.59	5.66
	12		35.3	28.91	22.7	423.2	119.9	47.17	3.83	4.82	2.46	5.41	5.48	5.56	5.63	5.7
	14		36.1	33.37	26.19	481.7	133.6	54.16	3.8	4.78	2.45	5.45	5.52	5.59	5.67	5.74
L140×	10	14	38.2	27.37	21.49	514.7	134.6	50.58	4.34	5.46	2.78	5.98	6.05	6.12	6.2	6.27
	12		39	32.51	25.52	603.7	154.6	59.8	4.31	5.43	2.77	6.02	6.09	6.16	6.23	6.31
	14		39.8	37.57	29.49	688.8	173	68.75	4.28	5.4	2.75	6.06	6.13	6.2	6.27	6.34
	16		40.6	42.54	33.39	770.2	189.9	77.46	4.26	5.36	2.74	6.09	6.16	6.23	6.31	6.38
L160×	10	16	43.1	31.5	24.73	779.5	180.8	66.7	4.97	6.27	3.2	6.78	6.85	6.92	6.99	7.06
	12		43.9	37.44	29.39	916.6	208.6	78.98	4.95	6.24	3.18	6.82	6.89	6.96	7.03	7.1
	14		44.7	43.3	33.99	1048	234.4	90.95	4.92	6.2	3.16	6.86	6.93	7	7.07	7.14
	16		45.5	49.07	38.52	1175	258.3	102.6	4.89	6.17	3.14	6.89	6.96	7.03	7.1	7.18
L180×	12	16	48.9	42.24	33.16	1321	270	100.8	5.59	7.05	3.58	7.63	7.7	7.77	7.84	7.91
	14		49.7	48.9	38.38	1514	304.6	116.3	5.57	7.02	3.57	7.67	7.74	7.81	7.88	7.95
	16		50.5	55.47	43.54	1701	336.9	131.4	5.54	6.98	3.55	7.7	7.77	7.84	7.91	7.98
	18		51.3	61.95	48.63	1881	367.1	146.1	5.51	6.94	3.53	7.73	7.8	7.87	7.95	8.02
L200×	14	18	54.6	54.64	42.89	2104	385.1	144.7	6.2	7.82	3.98	8.47	8.54	8.61	8.67	8.75
	16		55.4	62.01	48.68	2366	427	163.7	6.18	7.79	3.96	8.5	8.57	8.64	8.71	8.78
	18		56.2	69.3	54.4	2621	466.5	182.2	6.15	7.75	3.94	8.53	8.6	8.67	8.75	8.82
	20		56.9	76.5	60.06	2867	503.6	200.4	6.12	7.72	3.93	8.57	8.64	8.71	8.78	8.85
	24		58.4	90.66	71.17	3338	571.5	235.8	6.07	7.64	3.9	8.63	8.71	8.78	8.85	8.92

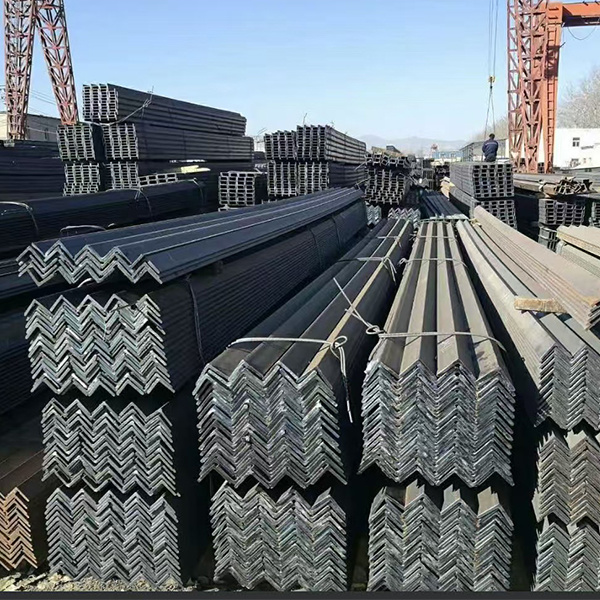

Packing and delivery

We can provide container or bulk transportation, road, rail or inland waterway and other land transportation methods for export. Of course, if there are special requirements, we can also use air transportation.
