Ar500 Ar550 Ar450 Wear-Resistant Plate Wear Resistant Steel Plate
Classification :
PRODUCT DETAILS
NM450 steel is one kind of Chinese wear/abrasion resistant steel plates. It was hot rolled and then the plates were heat-treated by direct quenching and tempering and reheat quenching and tempering techniques, respectively. With high mechanical strength, NM450 is 3 times to 5 times more than common low-alloy steel plates which can significantly improve surface hardness, usually achieved 360 ~ 450HB.
|
name |
|
|
length |
4m-12m or as required |
|
width |
0.6m-3m or as required |
|
thickness |
3-300 mm |
|
standard |
AISI, ASTM, DIN, JIS, GB, JIS, SUS, EN |
|
Surface treatment |
Cleaning, blasting and painting according to customer requirements |
|
Thickness tolerance |
± 0.1 mm |
|
Material |
NM360、NM400、NM450、NM500、NR360、NR400 |
|
application |
It is widely used in mining machinery, environmental protection machinery,cement machinery, engineering machinery, etc. due to its high wear resistance |
| China | USA | Germany | Japan | France | France | internationality |
| GB3077 | AlSI | DIN | JIS | NE | BS | ISO |
| 20Mn2 | 1320 1221 | 20Mn5 | SMn21 | 20M5 | 150M19 | - |
| 30Mn2 | 1330 | 30Mn5 | SMn24 | 32M5 | 150M28 | - |
| 35Mn2 | 1335 | 36Mn5 | SMnl | 35M5 | 150M36 | - |
| 40Mn2 | 1340 1341 | - | SMn2 | 40M5 | - | - |
| 45Mn2 | 1345 | 46Mn7 | SMn3 | 45M5 | - | - |
| 50Mn2 | 1052 | 50Mn7 | - | 55M5 | - | - |
| 20MnV | - | 20MnV6 | - | - | - | |
| 30Mn2MoW | - | -- | - | - | - | |
| 27SiMn | - | 27MnSi5 | - | - | - | |
| 35SiMn | - | 37MnSi5 | - | 38MS5 | - | - |
| 42SiMn | - | 38MnSi4 46MnSi4 | - | 38MS5 | - | - |
| 20SiMn2MoV | - | - | - | - | - | - |
| 25SiMn2MoV | - | - | - | - | - | - |
| 37SiMn2MoV | - | - | - | - | - | - |
| 40B | 14B35 | 35B2 | - | - | - | - |
| 45B | 50B46H | 45B2 | - | - | - | - |
| 50B | 14B50 | - | - | - | - | - |
| 4OM∏B | 15B41 | - | - | - | - | - |
| 45MnB | 15B48 50B44 | - | - | - | - | - |
| 20Mn2B | - | - | - | - | - | - |
| 20MnMoB | 80B20 | - | - | - | - | - |
| 15MnVB | - | - | - | - | - | - |
| - | - | - | - | - | - | - |
| - | - | - | - | - | - | - |
| 20MnVB | - | - | - | - | - | - |
| 40MnVB | - | - | - | - | - | - |
| 20MnTiB | - | - | - | - | - | - |
| 25MnTiBRE | - | - | - | - | - | - |
| 2OSiMnVB | - | - | - | - | - | - |
| 15Cr | 5015 5115 | 15Cr3 | SCr21 | 12C3 | 523A14 523M15 | - |
| 15CrA | - | - | - | - | - | - |
| 20Cr | 5120 | 20Cr4 | SCr22 | 18C3 18C4 | 527A19 527M20 | 683/11 20Cr4 20CrS4 |
| 30Cr | 5130 | 28Cr4 | SCr2 | 28C4 32C4 | 530A30 530A32 | - |
| 35Cr | 5135 | 34Cr4 37Cr4 | SCr3 | 38C4 | 530A36 | 683/8 3、 3a、 3b |
| 40Cr | 5140 | 38Cr4 41Cr4 | SCr4 | 42C4 | 530A40 530M40 | 683/1 4、 4a^ 4b |
| 45Cr | 5145 | 42Cr4 | SCR5 | 45C4 | - | - |
| 50Cr | 5150 5152 | - | - | 50C4 | En48 | - |
| 38CrSi | - | - | - | - | - | - |
| 12CrMo | 4119 | 13CrMo44 | - | 12CD4 15CD2 | - | - |
| 15CrMo | ASTM A-387Gr. B | 15CrMo5 16CrMo44 | SCM21 | 15CD4. 05 | BS1653 | - |
| 20CrMo | 4118 | 20CrMo5 22CrMo4 | SCM22 | 18CD4 20CD4 | CDS 12 CDSllO | - |
| 30CrMo | 4130 | 25CrMo4 | SCM2 | 30CD4 | CDS 13 | - |
| 30CrMoA | - | 32CrMol2 3ICRMo12 | - | - | - | - |
| 35CrMo | 4135 4137 | 34CrMo4 35CrMo4 | SCM3 | 35CD4 | 78A37 | 683/1 C35ea C35eb |
| 42CrMo | 4140 4142 | 41CrMo4 42CrMo4 | SCM4 | 40CD4 42CD4 | 708M40 708A42 709M40 | 683/1 3 |
| 12CrMoV | - | - | - | - | - | - |
| 35CrMoV | - | 35CrMoV5 | - | - | - | - |
| 12CrlMoV | - | 13CrMoV4.2 | - | - | - | - |
| 25Cr2MoVA | - | 24CrMoV5.5 | - | - | - | - |
| 25Cr2MolVA | - | - | - | - | - | - |
| 20CR3MoWVA | - | 21CrVMoW12 | - | - | - | - |
| 38CrMoΛl | 6370 (ΛMS) | 34CrAlMo5 41CrAlMo7 | SACM645 | 40CAD6.12 | 905M39 | 683/10 41CrAlMo74 |
| 20CrV | 6120 | 22CrV4 | - | 22CrV4 | - | - |
| 40CrV | 6140 | 42CrV | - | 42CrV4 | - | - |
| 50CrVA | 6150 | 50CrV4 | SUPlO | 50CV4 | 735A50 | - |
| 15CrMn | - | 16MnCr5 | - | 16MC5 | - | - |
| 20CrMn | 5120 | 20MnCr5 | SMC21 | 20MC5 | - | - |
| 40CrMn | 5140 | - | SMC3 | - | - | - |
| 20CrMnSi | - | - | - | - | - | |
| 25CrMnSi | - | - | SMKl | - | - | - |
| 30CrMnSi | - | - | - | - | - | - |
| 30CrMnSiA | - | - | - | - | - | - |
| 35CrMnSiA | - | - | SMK2 | - | - | - |
| 20CrMnMo | 4119 | 20CrMo5 | SCM23 | - | - | - |
| 40CrMnMo | 4140 | - | - | - | - | - |
| 20CrMnTi | - | - | SMK22 | - | - | - |
| 30CrMnTi | - | 30MnCrTi4 | - | - | - | - |
| 20CrNi | 3120 | 20NiCr6 | - | 20NC6 | 637A16 637M17 | - |
| 40CrNi | 3140 | 46NiCr6 | SNCl | 35NC6 | 640A35 640M40 | - |
| 45CrNi | 3145 | 45NiCr6 | - | - | - | - |
| 50CrNi | 3150 | - | - | - | - | - |
| 12CrNi2 | 3115 | 14NiCrlO | SNC21 | IONCll 14NC11 | - | - |
| 12CrNi3 | 3310 | 13NiCrl2 | SNC22 | 10NC12 14NC12 | 655A12 655M13 | - |
| 20CrNi3 | - | 22NiCrl4 | - | 20NC11 | - | - |
| 30CrNi3 | - | 28NiCrlO 31NiCrl4 | SNC2 | 30NC11 30NC12 | - | - |
| 37CrNi3 | - | 35NiCrl8 | SNC3 | 35NC15 | - | - |
| 12Cr2Ni4 | E3310 | 14NiCrl8 | - | 12NC15 | - | - |
| 20Cr2Ni4 | E3316 | 22NiCrl4 | - | 20NC14 | 659A15 659M15 | - |
| 20CrNiMo | 8620 8720 | 20NiCrMo2 21NiCrMo2 | - | 20NCD2 | 805A20 805M20 | - |
| 40CrNiMoA | 4340 9840 | 36NiCrMo4 40NiCrMo6 | SNCM8 | 35NCD5 40NCD3 | 817M40 816M40 | - |
| 45CrNiMoVA | 4437 | - | SNCM9 | - | - | - |
| 18Cr2Ni4WA | ||||||
| 25Cr2Ni4WA |
Packing and delivery
We can provide container or bulk transportation, road, rail or inland waterway and other land transportation methods for export. Of course, if there are special requirements, we can also use air transportation.

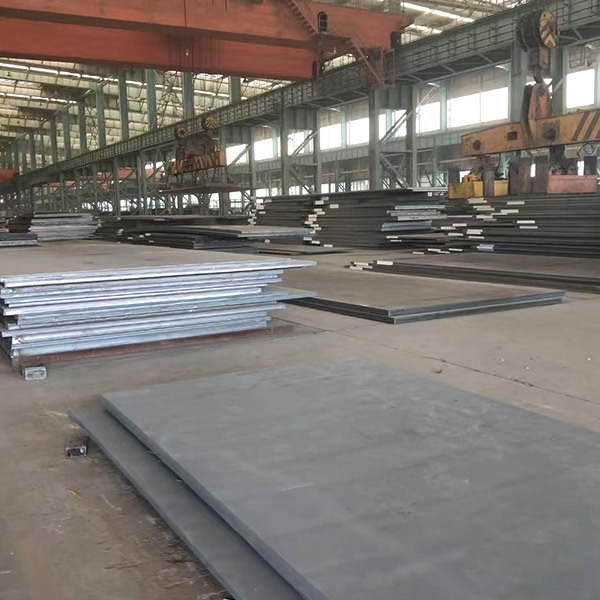

FACTORY WORKSHOP
APPLICATION AREAS
Metallurgy
Bridge
Pipeline
Oil mining
Ship
Airplane
FAQ
Once the products received by customer were found not comply with the products or contract demands, what will you do?
Do you provide samples Is it free or extra?
What certifications do your products have?
What kind of payment terms would you accept?
What is the delivery time?
What is your MOQ?
